Steel Dash 70 Series AshTray Replacement Switch Panel (Toyota Style) - Suits 73/74/75/78/79
Steel Dash 70 Series AshTray Replacement Switch Panel (Toyota Style) - Suits 73/74/75/78/79
1 review
Regular price
$63.95 AUD
Regular price
Sale price
$63.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

Description

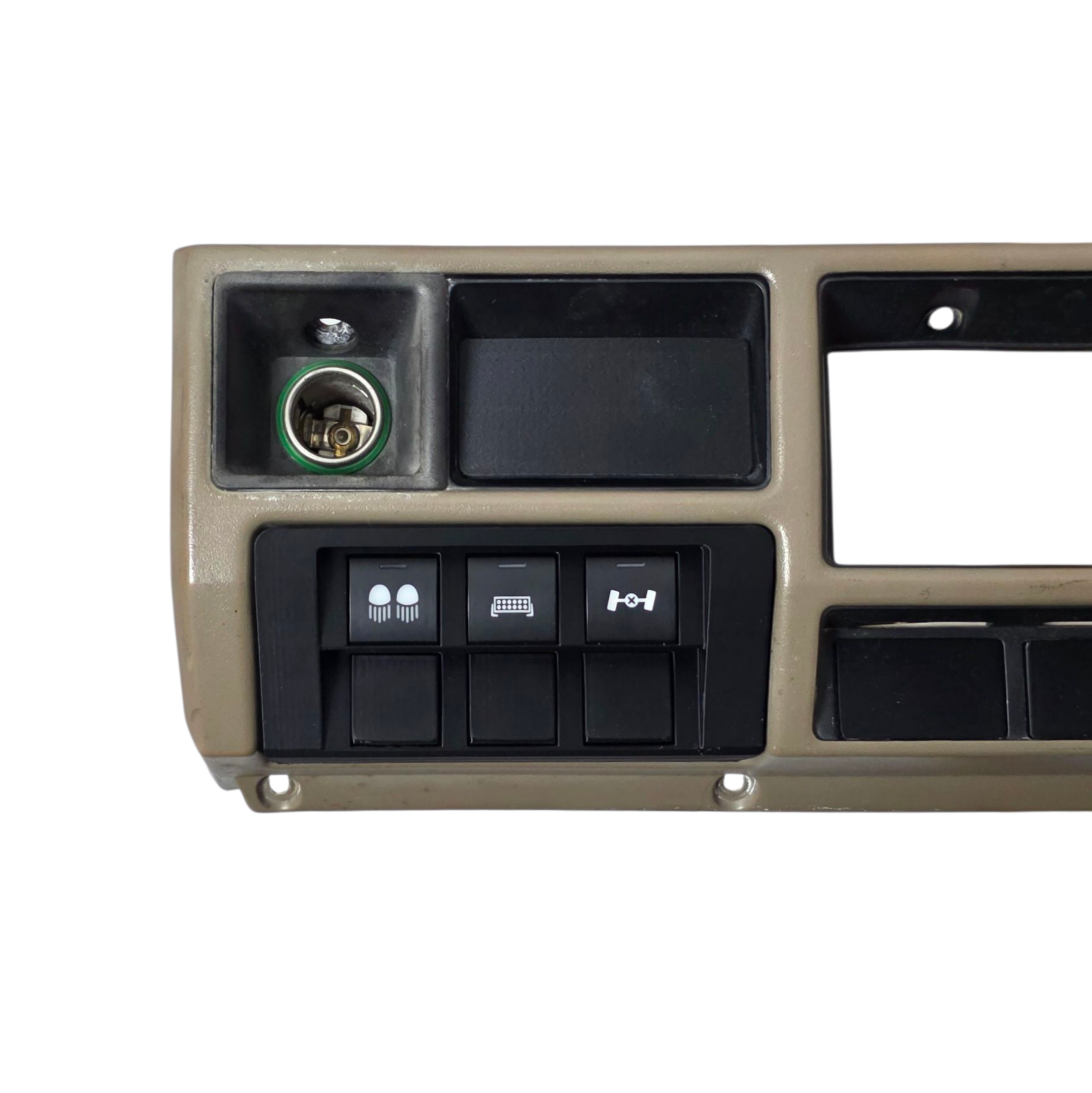

These switch panels are designed to integrate additional Toyota OEM style (24.5 x 42.5mm) or (22 x 22mm) switches in place of the existing ashtray. Don't need all the cavities? Additional Switch Blanks are available to purchase to future proof, and keep the dash looking tidy untill more switches are needed down the line. These switch panels have been designed to neatly integrate into the dashboard, following the existing angles, lines and styling of the lower dash panel.
Features:

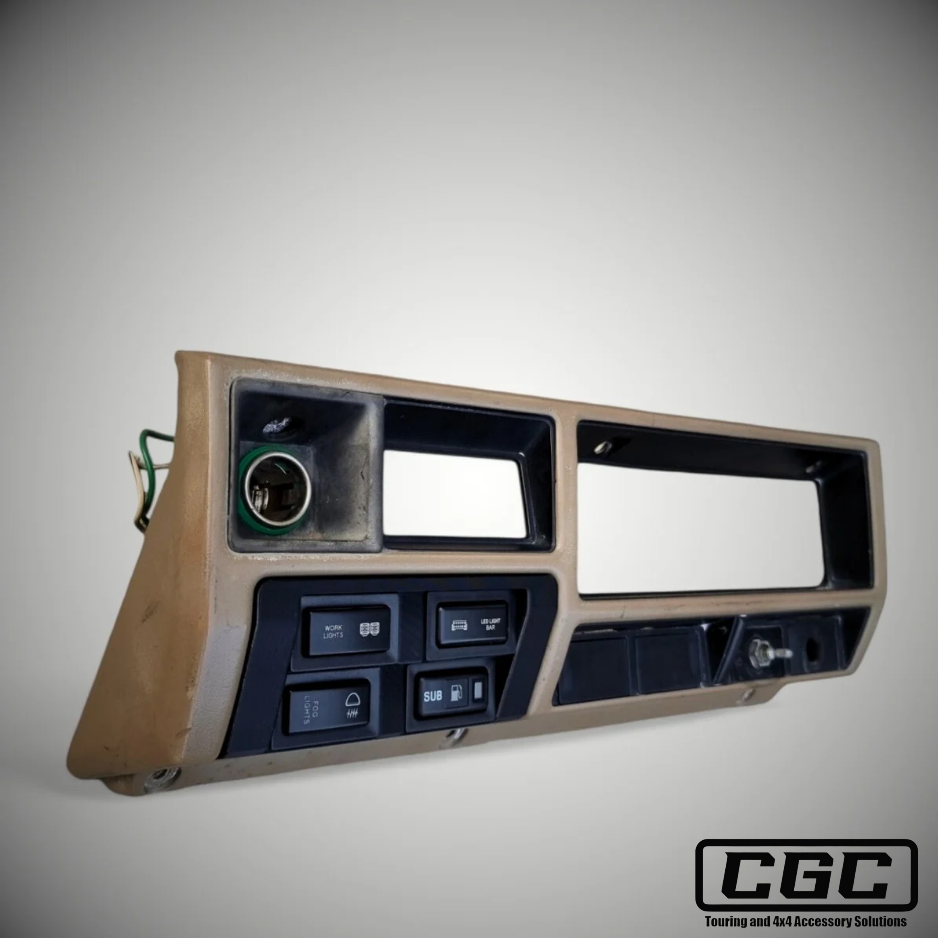

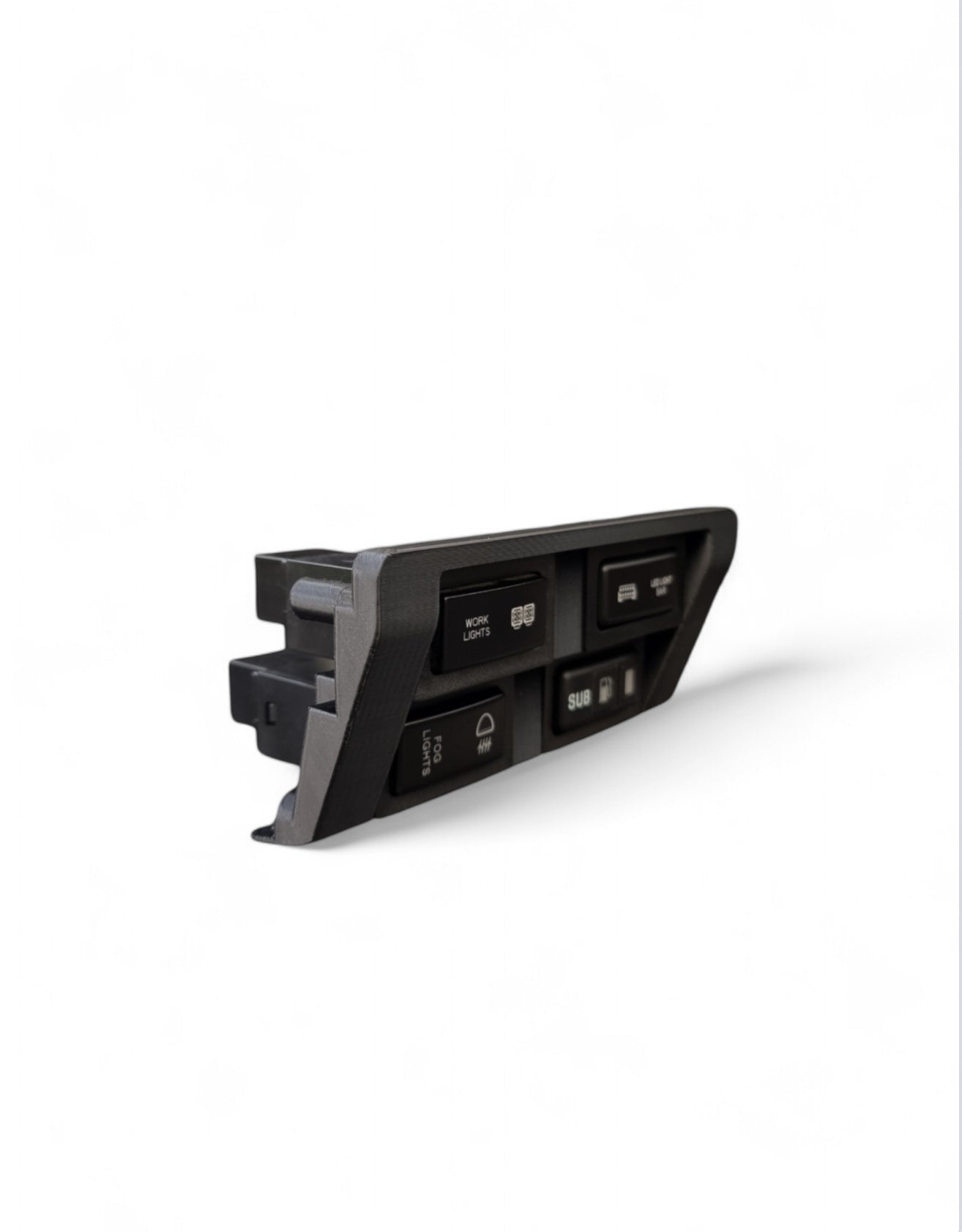

• Available in Four switch cavities to suit factory Toyota style switches (24.5 x 42.2mm)

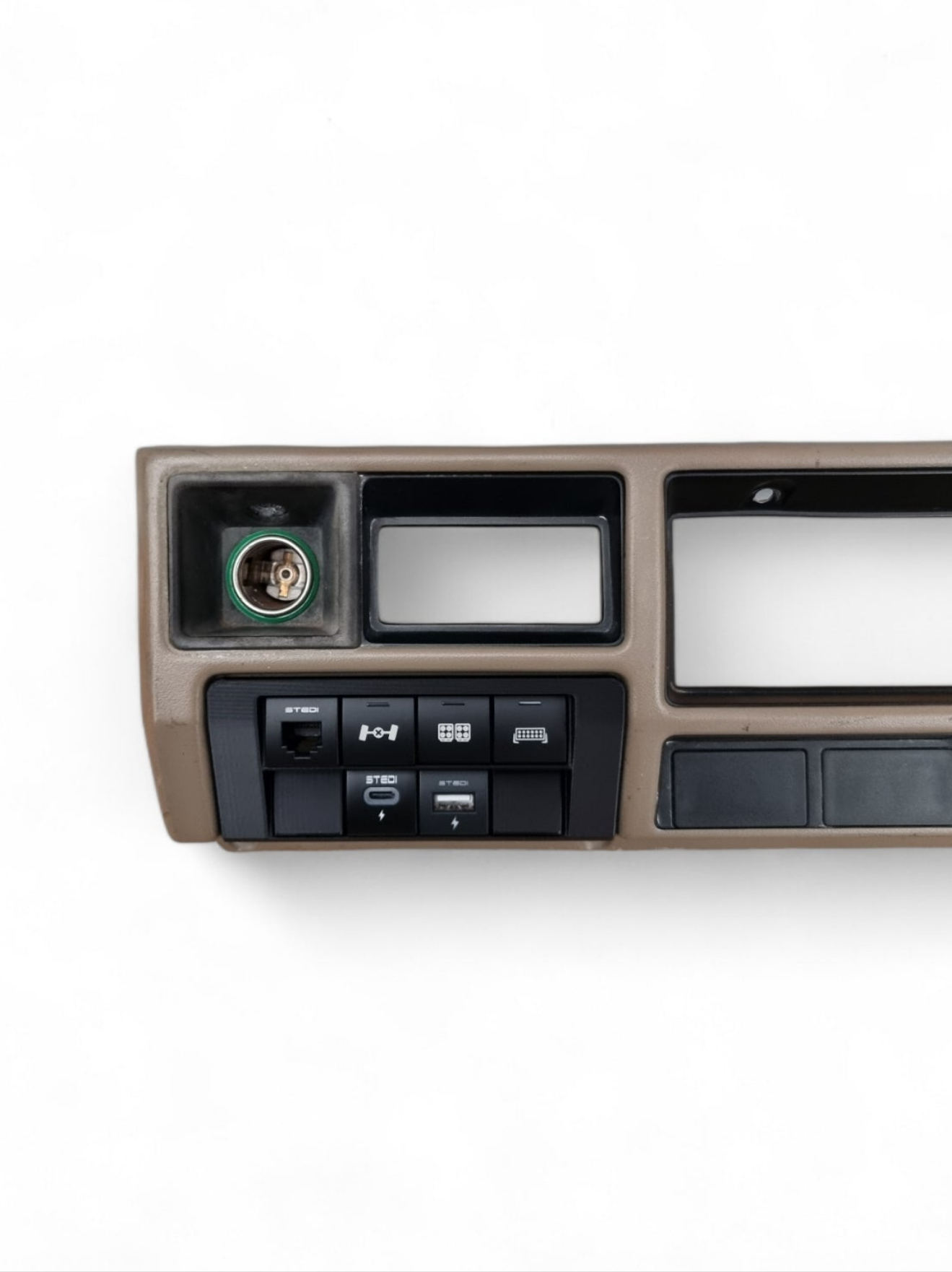

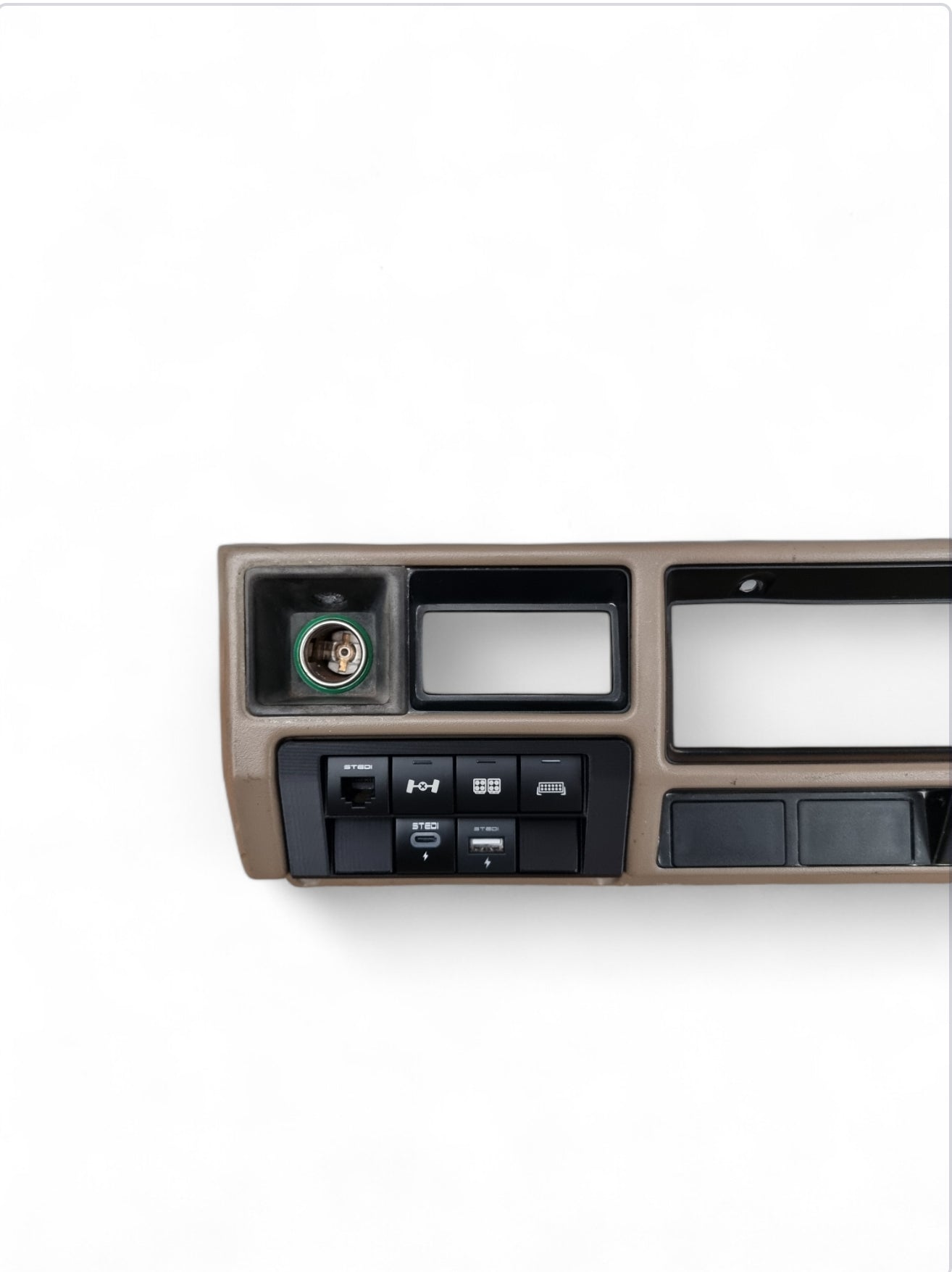

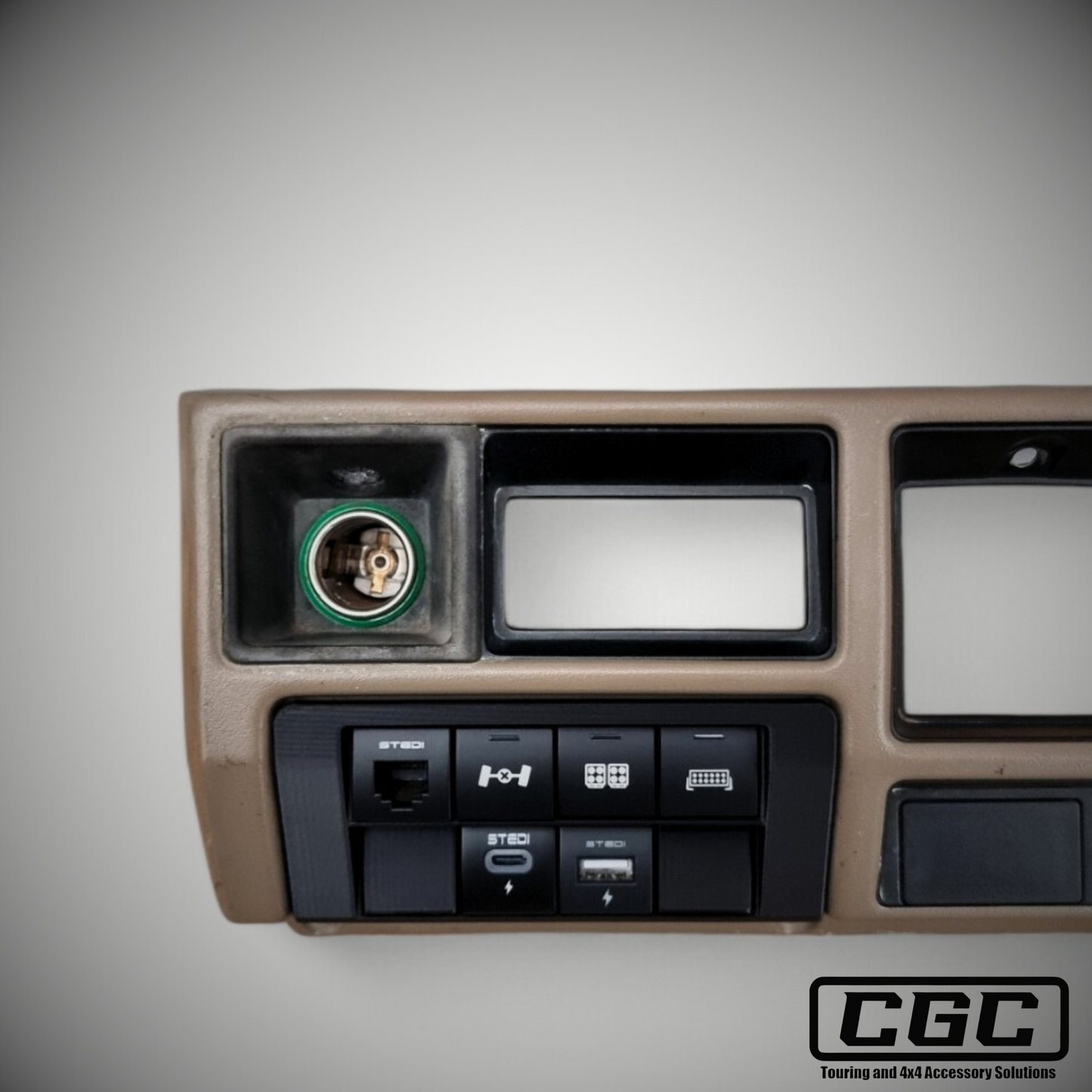

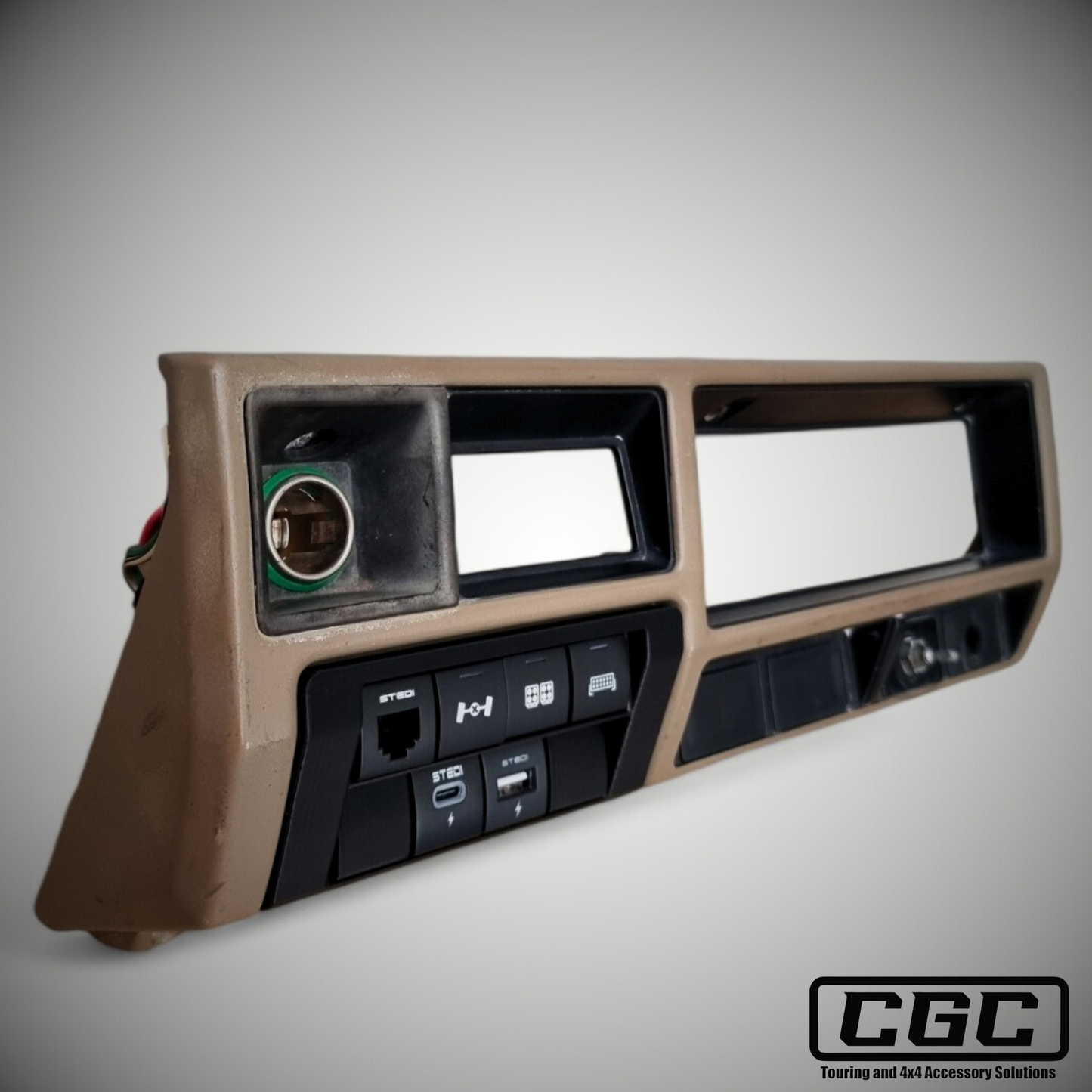

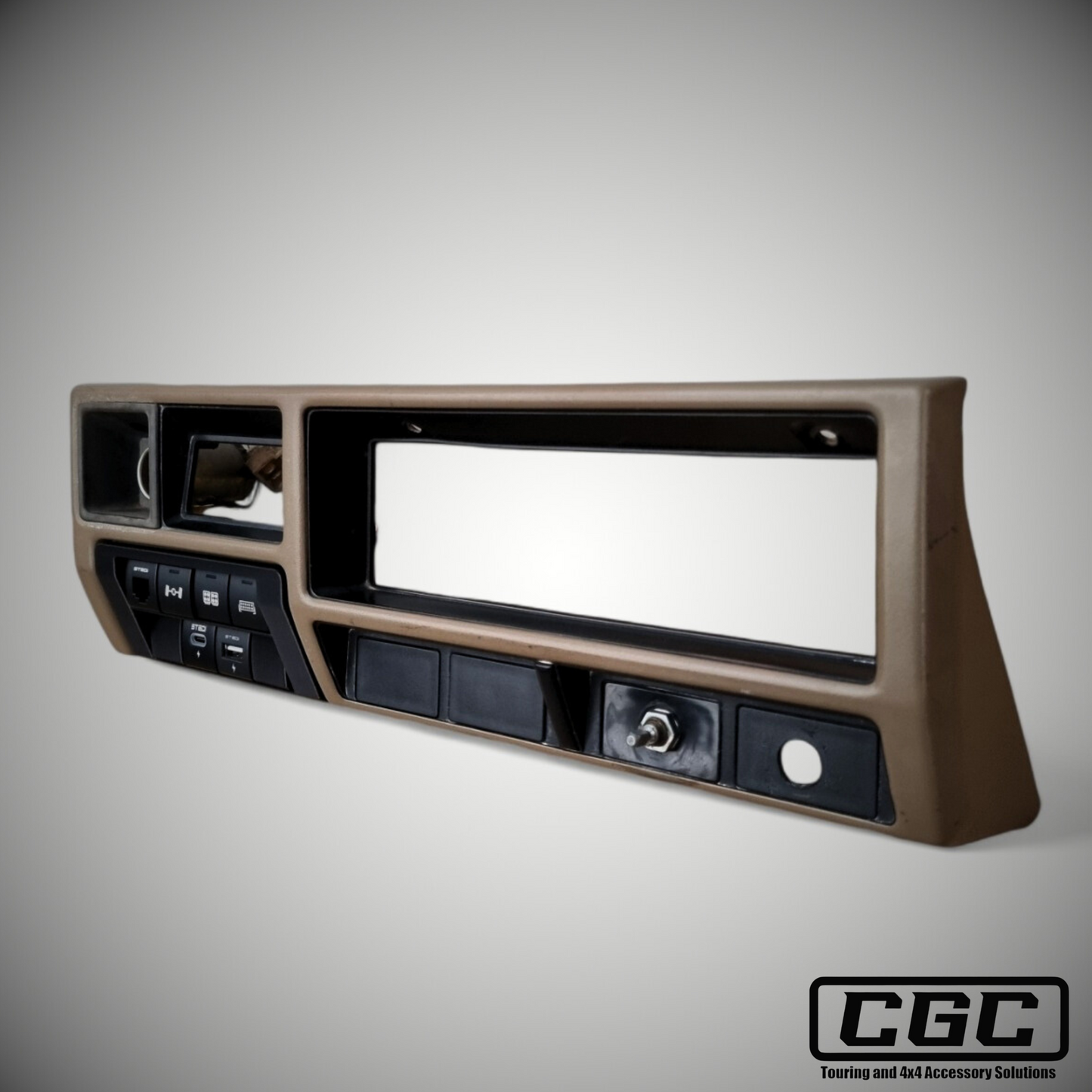

• Available in Six or Eight switch cavities to suit factory Toyota 300 Series style switches (22 x 22mm)
• Additional Switch Blanks available
• No modifications required, Simple installation
• Blends in with the styling of the lower dash panel for a more aesthetic look
• Same orientation as switches on existing lower dash panel
• Constructed with strong, super UV and chemically resistant material
• Manufactured using the latest 3D design and manufacturing technology

Vehicle Suitability
Suits: HDJ79, HZJ79, FZJ79, HDJ78, HZJ78, HZJ75, FJ75, FJ70, FJ73, BJ73, BJ74 and VDJ79 (07-09 Steel Dash Models)

Shipping
We ship Australia wide and World wide!
All orders are shipped through Australia Post with Tracking information provided.
All of our products are made to order. Please allow 5-8 Business days for manufacturing and shipping.

Disclaimers
Switches not included.
These products are made using 3D Manufacturing processes and may slightly differ to images pictured. Please be advised that this production process may also result in slight visible defects.

Install
1. Remove the screws from the lower dash panel, disconnect existing switches/plugs and remove the lower dash fascia from vehicle.
2. Remove the ashtray.
3. Remove the metal Ashtray guide plate by undoing the two remaining phillips head screws.

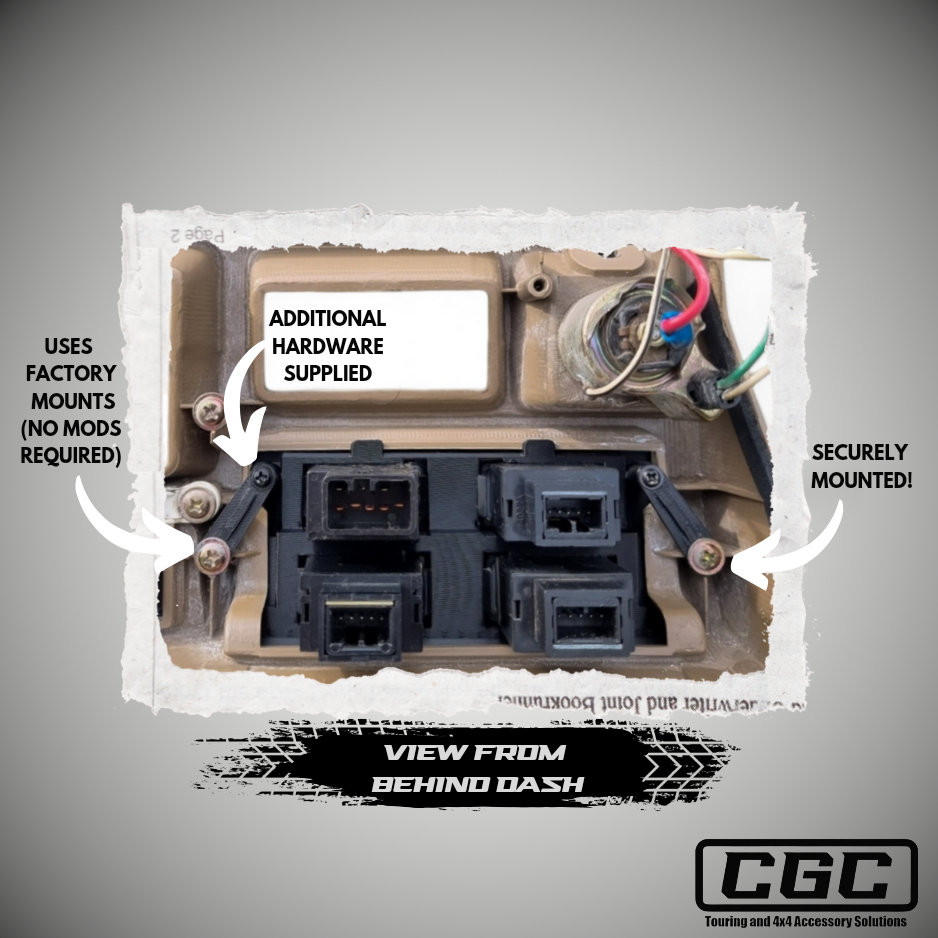

4. Reusing the two Phillips head screws for the guide plate, install the new brackets loosely.
5. Attach the switch panel to the brackets using the supplied hardware.
6. Position the switch panel evenly and tighten all four screws.
7. Install switches.
8. Reconnect all new and existing plugs.
